Description

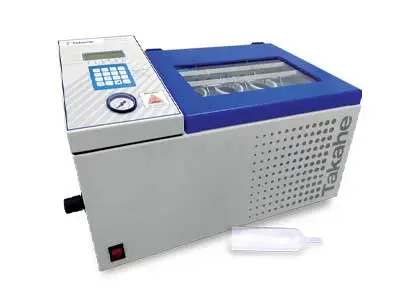

SpeedoVap Optical End Point Automatic Nitrogen Evaporator
Several laboratories require a particular volume of solvent retained at the end of evaporation that is reconstituted again before analysis. In those case the standard SpeedoVap High Volume Nitrogen Evaporator does not meet their demand.
For such applications, we have the SpeedoVap HV Optical End point Nitrogen Evaporator that allows the user to evaporate a preset 0.5 mL, 1 mL or 2 mL end point process.
The evaporation automatically stops at the pre-set volume for each of the specially designed end point test tube.
Test tubes are available in volumes of 100 mL or 200 mL and calibrated for 0.5 mL, 1 mL, 2 mL and 100 mL/200 mL for easy reconstitution.
Features
- Unattended operation for end point evaporation. NO necessity to keep checking endpoint volume.
- Controlled water bath adjustable from ambient to 80 °C.
- Built-in nitrogen regulator.
- LED display for better visibility under fume hood.
- Convenient size—no hood space required.
- Exhaust is open to atmosphere or within Fume Hood.
- Easy to use water drain pump.
- Small foot print.
Unique features are
Set programme cannot be changed once process has begun
User can request end point volume at 0.5 mL, 1.0 mL or 2.0
Process stops individually at each station as the end-point is attained
Technical Specifications
| Maximum Number of Samples | 6 |
| Max. sample volume | 100 mL / 200 mL |
| Rack Supplied | One Rack with one pre-set endpoint supplied with system |
| Water Bath Temperature | Ambient to 80 °C. |
| Timer Range | 1 min to 9.50 hours/indefinite |
| Gas Supply Requirements | Min. inlet pressure 70 psi
Max. inlet pressure 100 psi |
| Gas Regulator and Gas Gauge Range | Provided – manually adjustable. |
| Station Control | Each station can be individually controlled at the programme start |
| End point technology | Micro processor based, Optical sensors |
| Gas Flow Required | 30 LPM |
| Exhaust | In-built , Duct hose provided |
| Power Requirements | 230 VAC at 50 Hz (110 VAC –available on request) |
| Dimensions (WxDxH) | 25″ x 14″x 13.25″ (63.5 x 35.6 x 33.7 cm) |
| Net Weight | 18 kg |
| Shipping Weight | 25 kg |
| Technology | Vortex technology |
| Certifications | 2014/35/EU Low Voltage Directive
2014/35/EU Low Voltage Directive 2009/105/EC Simple Pressure Vessels. ISO9001:2015 |
| Gas control | Gas can be turned ‘ON’ for any/each of six independent stations |
Test Tubes (Dimensions as per catalogue or availability)
| Capacity in mL | Dimensions in mm (OD X H) |
|---|---|
| 100 mL | 0.5 mL, 1 mL, 2.0 mL |
| 200 mL | 0.5 mL, 1 mL, 2.0 mL |
We also supply the End Point test tubes with calibration certificate.
